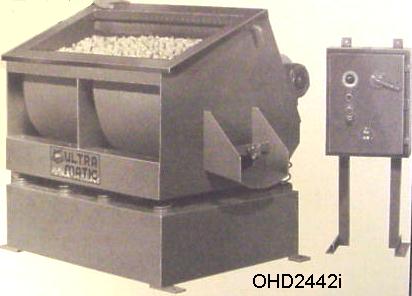

Ultramatic Model OHD2442 end discharge vibratory deburring and finishing machine, heavy duty design as specified below, with patented overhead drive.
9-1/2 Cubic Foot Capacity
22" X 40" Channel
5 HP Motor, Dual Voltage
Floor Space 60" X 72"
Weight 2,100 lbs
79 durometer lining
The Vibratory Tub is constructed of heavy steel, all welded structure. The tub is stress relieved and grit blasted to prevent fatigue. Tub gussets are of one piece construction, each attached to the tub with continuous welds. The discharge of media from the vibratory tub is by means of plug type doors at the end of the tub. The doors are secured by an adjustable quick acting door lock.
Removable Drains are located at the bottom of the vibratory tub for constant discharge of spent compound. A 1" hose is provided at the drain collection box for easy discharge to drain area.
The Overhead Drive creates a pull up rather than a push up motion. This method equalizes forces throughout the tub for a parallel media line relative to the horizontal center line. This makes possible the processing of heavy, large parts and the ability to run long part lengths without jack-knifing or twisting. Heavy duty spherical roller bearings are used in this patented drive mechanism. Each drive shaft features adjustable counterweights for variable amplitude.
Machine Base Price painted Vista Green $15,900
Optional Equipment
J.I.C. Control Panel includes U.L. listed components housed in a NEMA type 12 enclosure. 230 or 460 volt, 3 phase voltage is transformed to 110 volts at operator controls. Includes start/stop pushbuttons, compound system selector switch and plug in receptacle, 0-6 hour process timer, lapsed hour recorder and fused disconnect. $2,280
Automatic Premixing Compound System designed to flow compound and water into vibratory mass to keep parts and media clean during processing. Complete with pump, mixing head, valves, spray headers, drain hoses and 30 gallon drum. $500
DBA Reduction Package Sound Suppressor Cover manually operated to reduce noise level to an average overall reading of 84 dba or below. $3,200
Compartment Divider $800
Delivery: Call for current lead time
F.O.B: Illinois
Terms: 40% non refundable deposit with order, 50% prior to shipping
