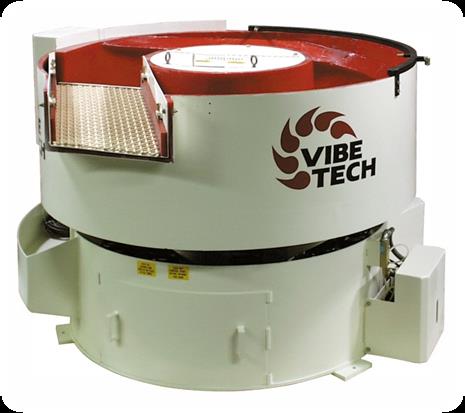

1 New Vibe Tech Model VT-6026 Vibratory Finisher, specified and described below.
CAPACITY -14 Cubic Foot Capacity
CONSTRUCTION -1/4" Outer Wall, 1/2" Center Wall, 1" Top and Bottom Bearing Mounting Plate
BOWL WIDTH -60"
MACHINE HEIGHT -44"
CHANNEL WIDTH -15"
UNLOAD HEIGHT -37"
HORIZONTAL PROFILE -1/3 Rise
MOTOR -7-1/2 HP 230/460 Volt, 3 Phase, 60 Cycle
LUBRICATION TYPE -Automatic recirculating oil with flow sensor and shut down features to protect bearings
LINING GRADE -80 Durometer
LINING THICKNESS -1" on sides and a minimum of 1.25" on bottom
CHANNEL CROSS SECTION PROFILE -Curved outer wall
DRIVE CARTRIDGE -1-1/4" Heavy wall construction
BEARING TYPE -2 Double Row Spherical Bearings with extra clearance for vibe application
CARTRIDGE ASSEMBLY -Wedge locking design with bolt in clips for ease of removal
ELECTRICAL CONTROLS -NEMA 12 control panel, 230/460/3/60, 115 volt control circuit. Panel has fused disconnect, overload protection, push button controls, total hour meter and process timer. Control panel is mounted on a fabricated frame to stand alone by the machine. Allen Bradley components are used in the panel.
PROCESSING CAPABILITY Conventional or steel ball burnishing
DRAINS -2 4" pop-in drains with 2" plumbing
SAFETY LIMIT SWITCHES -Included on all doors
SCREEN DECK TYPE -Coated or uncoated woven wire, machined UHMW or cast polyurethane
SCREEN DECK DESIGNS -Internal screens (approx 90 degree)
ECCENTRIC WEIGHTS -Slip on style weight segments and a moveable top master weight allow for easy adjustment.
PAINT -Mill Ivory (Off White) Industrial grade enamel
FLOOR SPACE -6' x 6'
WEIGHT -Approx 3,500 lbs.
PRICE POR
OPTIONS
AIR GATE -This option allows the operator to lower and raise the gate by a valve handle at the control panel.
COMPOUND SYSTEM Mixes compound and water, panel controlled.
DELIVERY: Call for current lead time after receipt of order and deposit
F.O.B: Kalamazoo, Michigan
TERMS: 50% deposit with order balance before shipment
WARRANTY CLM Vibe Tech Inc. will warranty the above equipment against defects in workmanship and materials for a period of one year. Defective parts are to be either repaired or replaced at Seller's discretion.
FACTS & CONDITIONS The above shipping date is an approximation. Also the weight is approximate due to the options the exact may vary. Seller assumes no responsibility for faulty installation, misuse of machinery and faulty advice of others not employed by the seller. Buyer is responsible for all costs of installation and use of machinery. Seller is not responsible for any federal, state or local regulations that apply to the customer nor cost of any damage the process might cause such as inhalation of chemicals, waste, noise damage or harm from improper use.
SMF & Machine Tools, Inc. has been selling new vibratory finishing equipment since 1969. We have sold over 500 vibratory finishing machines and have set up over 1000 processes. If you have any questions about vibratory finishing, please don't hesitate to give us a call.
Sincerely,
Rusty Scott, Vibratory Sales
SMF & Machine Tools, Inc.
