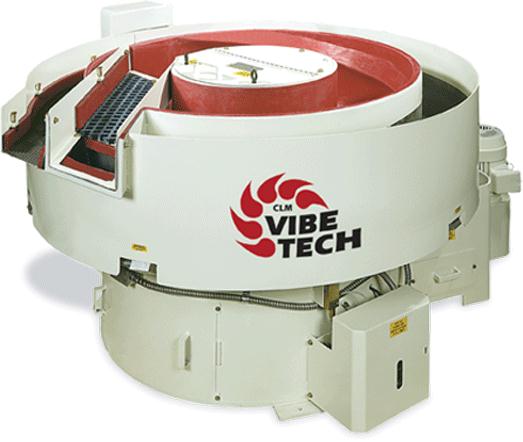

1 New Vibe Tech Model VT-5024C Combo Vibratory Finisher/Cob Dryer, specified and described below.
CAPACITY -7-1/2 Cubic Foot
CONSTRUCTION -1/4" Outer Wall, 3/8" Center Wall, 5/8" Top and Bottom Bearing Mounting Plate
BOWL WIDTH -66"
MACHINE HEIGHT -42"
PROCESS CHANNEL WIDTH -11"
FINISHER CHANNEL WIDTH -8"
UNLOAD HEIGHT -34"
HORIZONTAL PROFILE -1/3 Rise
MOTOR -5 HP 230/460 Volt, 3 Phase, 60 Cycle
BEARING TYPE -2 Double Row Spherical Bearings with extra clearance for vibe application
LUBRICATION TYPE -Manual grease lube
DRAINS -2 4" pop-in drains with 2" plumbing
SAFETY LIMIT SWITCHES -Included on all doors
SCREEN DECK TYPE -Coated or uncoated woven wire, machined UHMW or cast polyurethane
SCREEN DECK DESIGNS -Internal screens (approx 90 degree)
ECCENTRIC WEIGHTS -Slip on style weight segments and a moveable top master weight allow for easy adjustment.
PAINT -Mill Ivory (Off White) Industrial grade enamel
FLOOR SPACE -6' x 6'
WEIGHT -Approx 2,700 lbs.
ELECTRICAL CONTROLS -NEMA 101 control panel, 230/460/3/60, 115 volt control circuit. Panel has fused disconnect, overload protection, push button controls, total hour meter and process timer. Control panel is mounted on a fabricated frame to stand alone by the machine.
HEAT SYSTEM -500 watt heater elements are mounted on the base to radiate heat on to the bottom of the bowl where the parts are being dried. These are tied to the control panel and have separate start buttons. This option must be combined with the NEMA 101 Control Panel.
AIR GATE -This option allows the operator to lower and raise the gate by a valve handle at the control panel.
CURVED OUTER WALL Aids in the roll of the mass.
COMPOUND SYSTEM Mixes compound and water, panel controlled.
DELIVERY: Call for current lead time after receipt of order and deposit
TERMS: 50% deposit with order, balance due before shipment
WARRANTY CLM Vibe Tech Inc. will warranty the above equipment against defects in workmanship and materials for a period of one year. Defective parts are to be either repaired or replaced at Seller's discretion.
FACTS & CONDITIONS The above shipping date is an approximation. Also the weight is approximate due to the options the exact may vary. Seller assumes no responsibility for faulty installation, misuse of machinery and faulty advice of others not employed by the seller. Buyer is responsible for all costs of installation and use of machinery. Seller is not responsible for any federal, state or local regulations that apply to the customer nor cost of any damage the process might cause such as inhalation of chemicals, waste, noise damage or harm from improper use.
SMF & Machine Tools, Inc. has been selling new vibratory finishing equipment since 1969. We have sold over 500 vibratory finishing machines and have set up over 1000 processes. If you have any questions about vibratory finishing, please don't hesitate to give us a call.
